主要技術參數
防護等級:IP00 ?????
初級:?120/207/220/277V 50/60Hz
次級: 24VAC ????????
絕緣等級:Class A、Class B
絕緣強度:3.75KV Rms
環境溫度: (t)-40℃?????????
符合標準:?
EN60065:2006/UL5085-2/UL1446

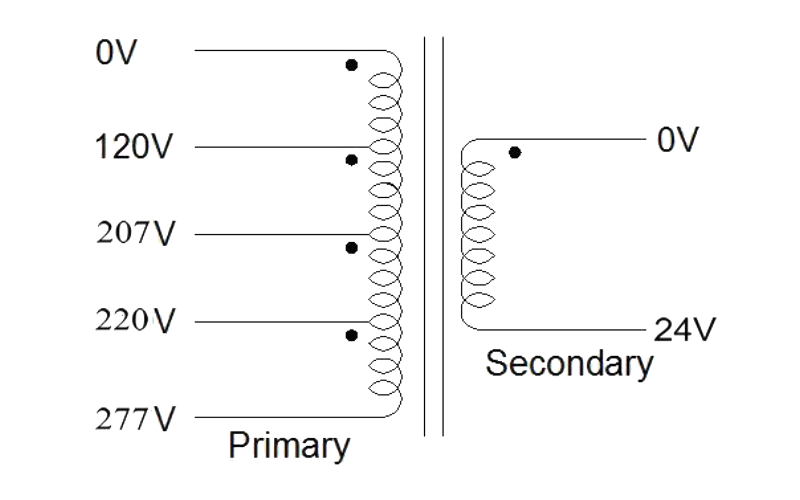

原理圖：

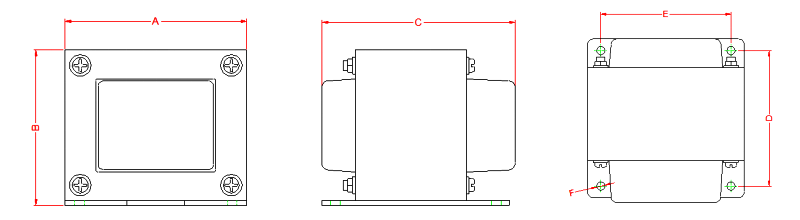

結構圖：
參考尺寸
|
功率/VA |
A |
B |
C |
D |
E |
F |
重量/kg |
|
30VA |
66.0 |
55.0 |
61.0 |
45.0 |
44.0 |
M4 |
0.85 |
|
35VA |
66.0 |
55.0 |
64.0 |
48.0 |
44.0 |
M4 |
0.95 |
|
55VA |
66.0 |
55.0 |
72.0 |
56.0 |
44.0 |
M4 |
1.12 |
|
70VA |
66.0 |
55.0 |
81.0 |
65.0 |
44.0 |
M4 |
1.30 |
|
80VA |
76.2 |
63.5 |
66.0 |
50.0 |
63.5 |
M4 |
1.16 |
|
95VA |
76.2 |
63.5 |
81.0 |
65.0 |
63.5 |
M4 |
1.85 |
|
110VA |
76.2 |
63.5 |
86.0 |
70.0 |
63.5 |
M4 |
1.90 |
|
110VA |
86.0 |
71.5 |
86.0 |
65.0 |
71.5 |
M4 |
2.20 |
|
150VA |
96.0 |
80.0 |
90.0 |
70.0 |
80.0 |
M5 |
2.80 |
|
210VA |
105.0 |
87.5 |
100.0 |
75.0 |
87.5 |
M5 |
3.80 |
|
400VA |
120.0 |
100.0 |
115.0 |
85.0 |
100.0 |
M5 |
5.82 |
|
500VA |
133.0 |
111.0 |
120.0 |
90.0 |
111.0 |
M5 |
7.10 |
接受客戶定做
